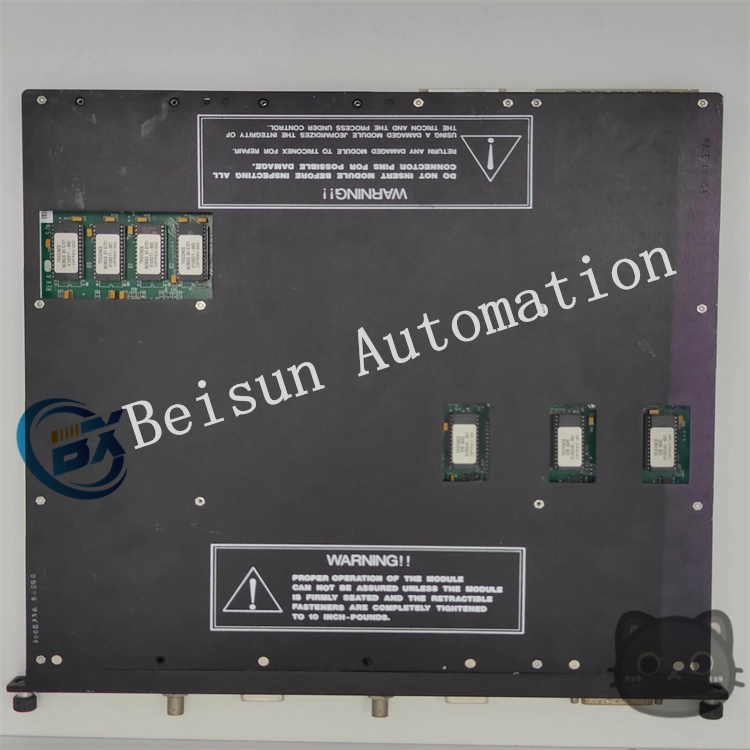

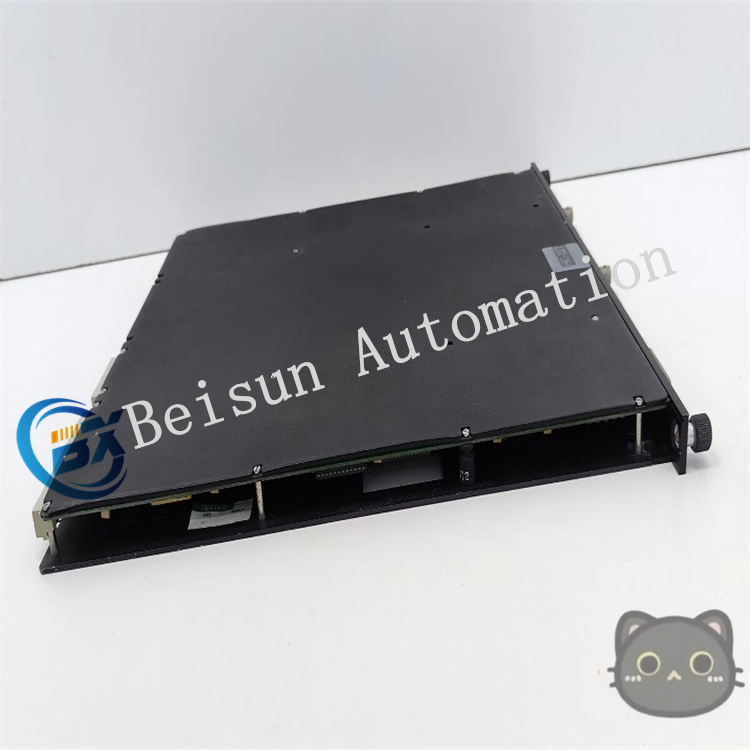

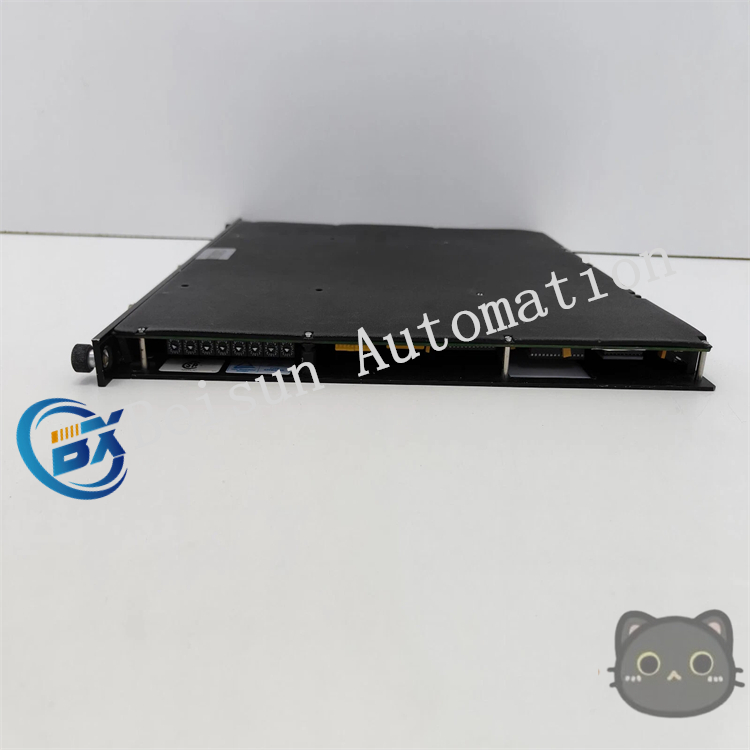

TRICONEX 4329: A Widely Used Network Communication Module

Functional Features

• High Reliability: Adopting redundant design and fault-tolerant technology, it can operate stably in harsh industrial environments, ensuring the continuous availability of the system and reducing downtime caused by faults.
• Flexible Configuration: Supporting multiple communication protocols such as Modbus, TCP/IP, and Triconex protocols, and equipped with various communication interfaces, it can be flexibly configured according to different industrial application requirements, facilitating integration with other devices and systems.
• Powerful Processing Capability: Possessing strong computing and data processing capabilities, it can quickly handle a large number of input and output signals and complex control logic, and can monitor and control various parameters in industrial processes in real-time, such as temperature, pressure, and flow rate.
• Fault Diagnosis and Self-Recovery: With a comprehensive fault diagnosis function, it can monitor its own working status in real-time. Once a fault is detected, it can quickly locate it and take corresponding measures, such as automatically switching to a backup channel or performing self-recovery, to ensure the normal operation of the system.
• Dual-Port Communication: Providing two independent communication ports (NET 1 and NET 2) for different communication protocols respectively, it can connect different devices or systems simultaneously, realizing parallel transmission and exchange of data, and improving communication efficiency and flexibility.

Technical Parameters

• Communication Interfaces: Two Ethernet ports (supporting IEEE 802.3), two BNC connector ports, and one RS-232 compatible port.
• Data Transmission Rate: 10/100Mbps.
• Communication Distance: The typical distance is 185 meters (607 feet), and it can be extended to 4000 meters (2.5 miles) using repeaters and standard cables.
• Operating Temperature Range: 0℃~55℃.
• Relative Humidity: 5%~95% (non-condensing).
• Power Supply: Powered by the Triconex system.
• Dimensions and Weight: 16cm×16cm×12cm, with a weight of 0.8kg.
• Port Isolation: Supporting 500VDC port isolation to ensure communication security.

Application Scenarios

• Petrochemical Industry: In processes such as oil extraction, refining, and chemical production, it is used for monitoring and controlling key equipment and process flows, such as the control of distillation towers in refineries and the temperature and pressure control of chemical reactors, ensuring the safety and stability of the production process.
• Power Industry: It can be applied to unit control in power plants, relay protection and automation systems of power grids, etc. It monitors and controls the operating parameters of the power system in real-time, ensuring reliable power supply and improving the stability and security of the power grid.
• Metallurgical Industry: In the metallurgical production process of iron and steel, non-ferrous metals, etc., it is used for the automatic control of key equipment such as blast furnaces, converters, and continuous casters, realizing the optimization of the production process and quality control, and improving production efficiency and product quality.
• Other Industrial Fields: Widely used in other industrial fields with high requirements for automatic control, such as papermaking, pharmaceutical, and water treatment. It precisely controls and monitors various parameters in the production process, improving the level of production automation and economic benefits.
