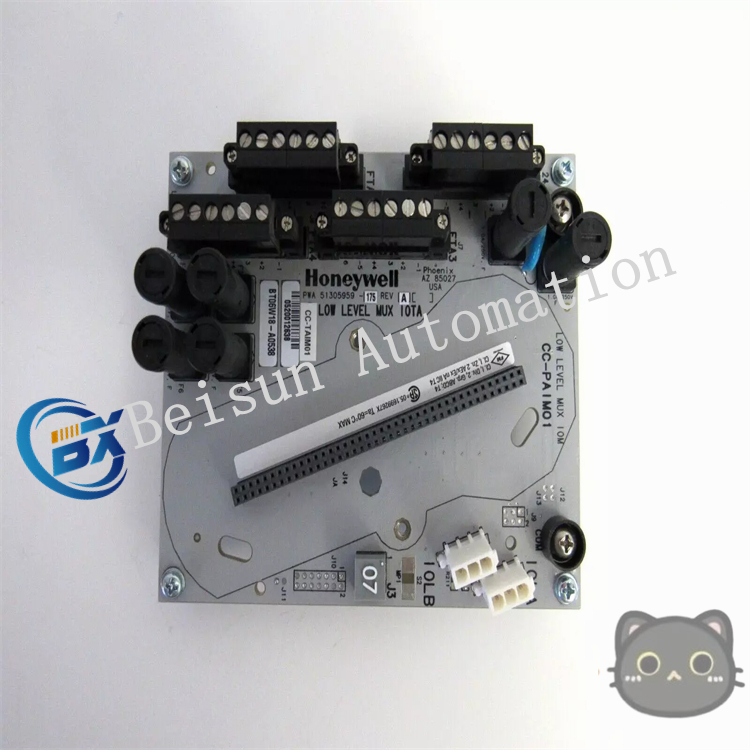

Honeywell CC-TAIM01 Analog Input Module

• High-precision signal acquisition: It can provide accurate signal acquisition, such as supporting thermocouple and/or thermal resistance inputs, and can accurately measure parameters like temperature.
• Multi-channel design: Some data shows that it has 64 fully isolated channels, and other data indicates 8 channels, which can collect multiple signals simultaneously.
• High resolution: Equipped with 16-bit ADC resolution, it can convert analog signals to digital signals more accurately.
• Fast scanning rate: The channel scanning rate can reach 1 time per second (for 64-channel) and 1kHz per channel (for 8-channel module).
• Strong anti-interference ability: There is 1500V RMS isolation between the input and logic, which can effectively resist electrical interference.
• Wide operating temperature range: It can usually work stably in the environment of 0°C to 60°C.

• Input voltage range: Software-selectable 0-10V or 0-20mA.
• Input impedance: Greater than 1MΩ for voltage input, 250Ω for current input.
• Power supply: Usually 24V DC±10%, with a current consumption of about 50mA (may vary with different models).
• Size: The common size is 100mm x 75mm x 22.5mm, adopting a rail mounting method to save space.

• Petroleum and natural gas industry: Used to monitor parameters such as temperature, pressure, flow rate and liquid level in oil refining, chemical industry and natural gas processing processes.
• Electric power industry: Can monitor equipment status such as boiler temperature, steam turbine vibration and transformer oil temperature in power plants and power transmission and distribution systems.
• Chemical industry: Precisely measure the temperature, pressure, pH value, etc. of reaction kettles to achieve precise control of chemical reactions.
• Pharmaceutical industry: Monitor environmental parameters such as temperature and humidity during drug production to meet GMP requirements.
• Food and beverage industry: Monitor parameters such as temperature and flow rate on the production line to ensure product quality and production efficiency.
• Water treatment industry: Used to monitor parameters such as water level, flow rate and pressure in tap water and sewage treatment plants to realize automatic control.
