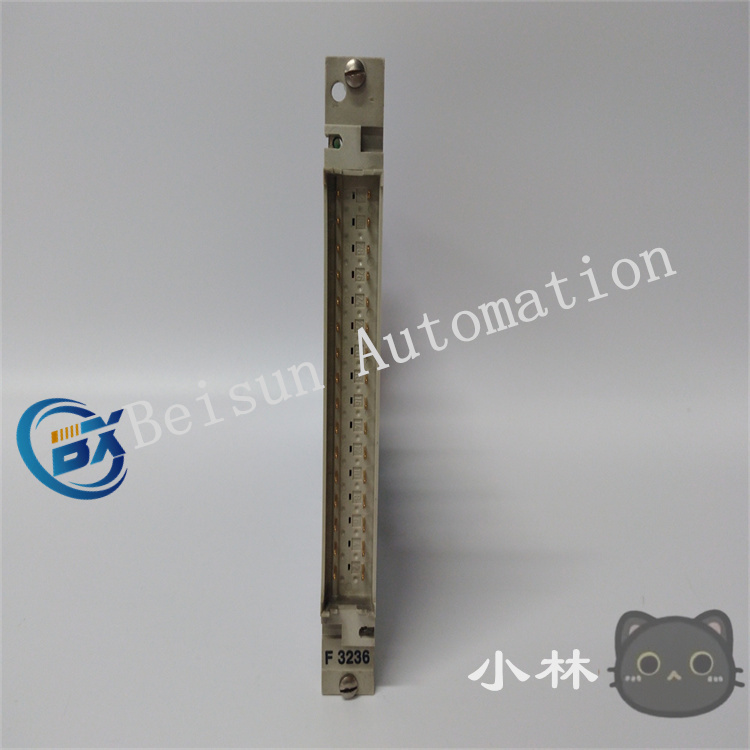

HIMA F3236 digital output module

HIMA F3236 digital output module

Output characteristic
Number of output channels: With 16 output channels, 16 external devices or actuators can be controlled simultaneously.
Output signal type: The output is a digital signal, which can provide 24V DC switching output for driving relays, contactors, indicators and other devices.
Output current capacity: The rated output current of each output channel is generally 0.5-1A, which can meet the driving requirements of most industrial field digital output devices. Some models may support higher output currents to accommodate special load requirements.
Short-circuit protection: With the short-circuit protection function, when the output channel is short-circuit, the current can be automatically cut off to prevent module damage, and the fault diagnosis function can prompt short-circuit fault information, which is convenient for maintenance personnel to rectify the problem in time.
Signal isolation: Electrical isolation technology is used between the output channel and the internal circuit, and the isolation voltage can usually reach more than 2500V AC, effectively preventing external interference signals from affecting the control system, but also protecting the control system from the influence of external equipment failures.

Functional characteristics
Diagnostic function: It integrates rich diagnostic functions to monitor the working status of the module in real time, including the state of the output channel, the state of the power supply, and the state of the communication. Once a fault is detected, a detailed fault alarm is sent through the indicator or communication interface to help maintenance personnel quickly locate and resolve the problem.
Fail-safe mechanism: Support fail-safe mode configuration, that is, when the module fails, you can set the output to a safe state according to a preset policy, such as all output is low or maintain the last state, to ensure the safety and stability of the industrial process.

Working environment characteristics
Working temperature: The working temperature range is generally -20 ° C to + 60 ° C, which can adapt to the temperature changes of most industrial environments, whether it is in the cold north or the hot southern industrial site, it can work stably.
Storage temperature: Storage temperature range is usually -40 ℃ to + 85℃, in the non-working state, the module can be stored in a wide temperature range, with good environmental adaptability.
Humidity: can adapt to the relative humidity of 5%-95%RH (no condensation) environmental conditions, in the humid industrial environment, such as chemical, pharmaceutical and other industries of the production workshop, can also operate normally, will not cause humidity problems caused by module performance degradation or damage.
