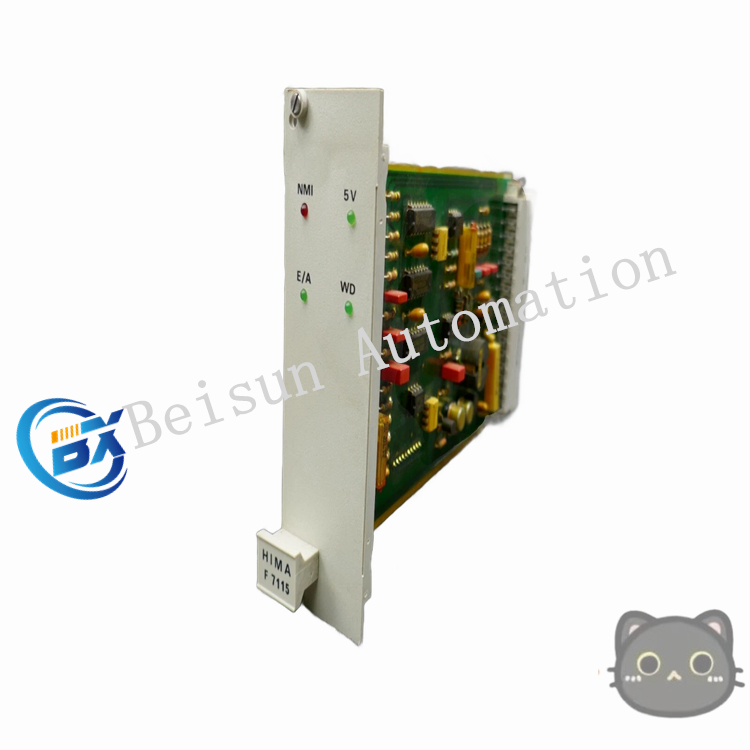

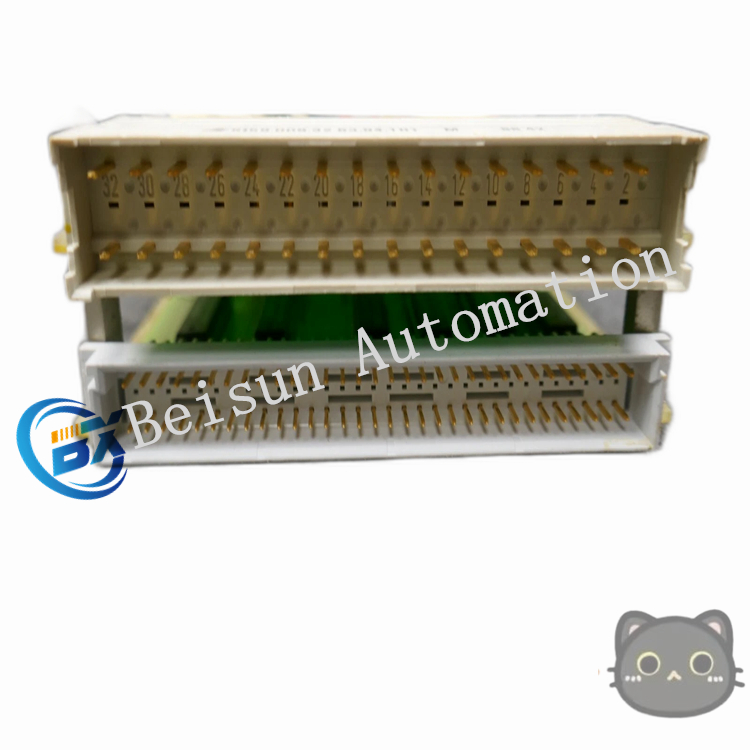

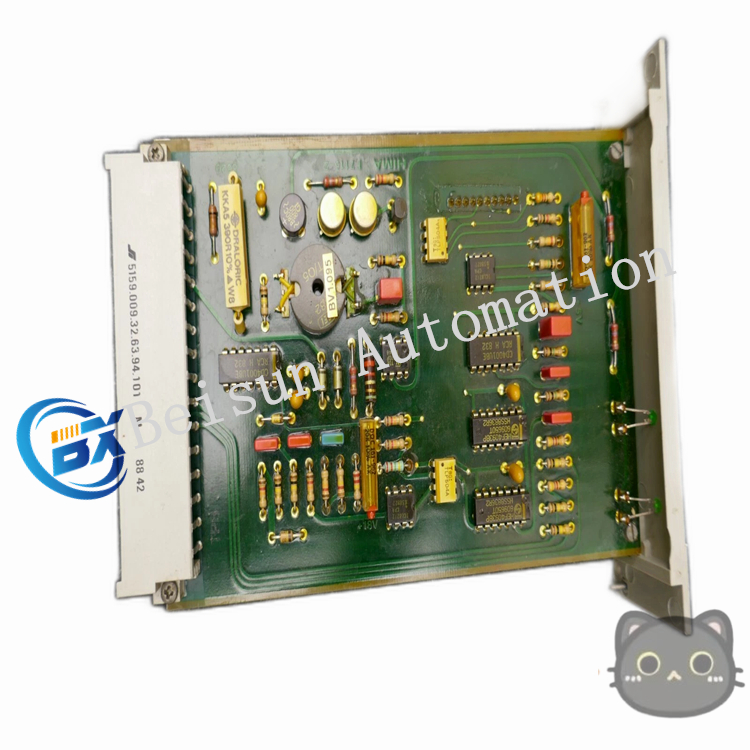

HIMA F7115 Digital Output Module

Functional Features

• Digital Signal Output: Its main function is to convert digital signals from the controller into corresponding switching signals to drive external devices such as relays, contactors, and indicator lights, thereby achieving precise control over industrial processes.
• High Reliability: Safety control products manufactured by HIMA meet the highest-level requirements for safety control such as IEC61508 and DIN19250, and have obtained TüV’s highest-level AK7/SIL4 certification. As a member of these products, the F7115 module boasts high reliability, enabling stable operation in harsh industrial environments and ensuring the safety and stability of the system.
• Fault Monitoring and Diagnosis: It is equipped with built-in fault monitoring functions, which can monitor its own working status in real-time. Once a fault is detected, it can promptly send out an alarm signal and take corresponding protective measures, such as output signal locking and module reset, to prevent the spread of faults and ensure system safety.
• Power Supply Monitoring: It can monitor the power supply of the module in real-time to ensure that the power supply voltage is within the normal range. When there is an abnormality in the power supply, it can respond in a timely manner to avoid abnormal operation of the module due to power supply issues.

Technical Parameters

• Power Supply Voltage: It is usually powered by a 24V DC power supply, and the output is a 5V DC power supply, which provides the required power for the microprocessor system and control current for I/O modules.
• Number of Output Points: It generally has multiple digital output points, and modules with different numbers of points can be selected according to actual needs to meet the control requirements of different systems.
• Output Current: Each output point can provide a certain output current to drive external loads. The output current usually ranges from several amperes to dozens of amperes, depending on the model and specification of the module.
• Response Time: The response time of the module is relatively short, which can quickly convert input signals into output signals, realizing rapid control of external devices. The general response time is at the millisecond level.

Application Fields

• Petrochemical Industry: In the petrochemical production process, it is used to control the start-stop and operation of various valves, pumps, compressors and other equipment to ensure the safety and stability of the production process.
• Power Industry: It can be applied in substations, power plants and other places of the power system to control switchgear, relay protection devices, etc., ensuring the reliable operation of the power system.
• Metallurgical Industry: In the metallurgical production process, such as iron and steel plants, non-ferrous metal smelters, etc., it is used to control the operation of various metallurgical equipment, such as blast furnaces, converters, rolling mills, etc., so as to improve production efficiency and product quality.
• Pharmaceutical Industry: It is used for automatic control in the pharmaceutical production process, such as the control of pharmaceutical production equipment and pharmaceutical packaging equipment, to ensure the quality and safety of pharmaceutical production.
