Technical Parameters:
Input Voltage: 18-36VDC.
Output Voltage: 24VDC.
Output Current: 6.3A.
Output Channels: 4.
Isolation Voltage: 2kV.
Protection Class: IP20.
Operating Temperature: -20℃ to +70℃.
Storage Temperature: -40℃ to +85℃.

Functional Features:
Stable Power Supply: It can convert the input voltage of 18-36VDC into a stable 24VDC output, providing reliable power for system modules and on-site equipment to ensure their normal operation.
Multi-channel Output and Protection: The 4 output channels can supply power to multiple devices simultaneously, and each channel is equipped with independent overcurrent and short-circuit protection functions, which improves the flexibility and reliability of power distribution.

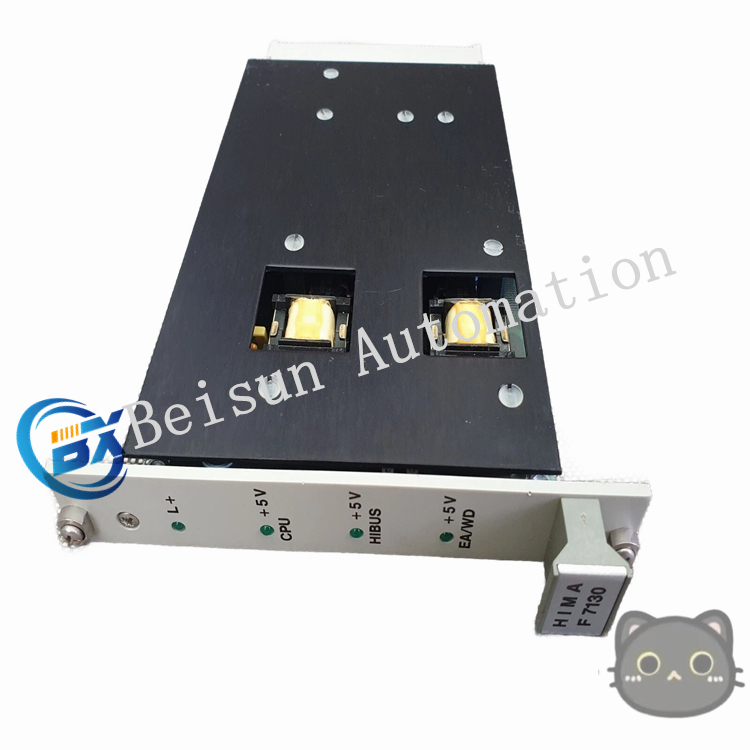

Power Monitoring: It can monitor the system voltage, display the power status through 3 LED displays on the front of the module, and also provide 3 test points for diagnostic display of the central module and operation monitoring in user programs.

Performance Advantages:
High Reliability: It adopts precision engineering components and a sturdy aluminum alloy housing, with excellent shock and vibration resistance. It has an isolation voltage of 2kV, which can prevent electrical interference and electric leakage. Moreover, it complies with the IP20 protection class standard, enabling it to adapt to harsh industrial environments and ensuring stable and reliable power distribution.
High Safety Performance: In addition to the advantages of isolation voltage and protection class, it also meets international safety certification standards such as CE, ensuring safe use.
Easy Installation and Maintenance: The module has a size of approximately 2×18.8×12.7cm. Its compact modular design allows for easy installation in control cabinets. The terminal connection is safe and convenient, and the intuitive interface and simple installation process reduce the installation and maintenance costs for technicians.

Application Fields: It is commonly used in fields such as machine tools, robots, process control, building automation, medical equipment, and transportation. Especially in industrial environments with high safety standards such as petrochemical and manufacturing industries, it is widely applied to provide stable power for related equipment and ensure the safe and reliable operation of the system.
