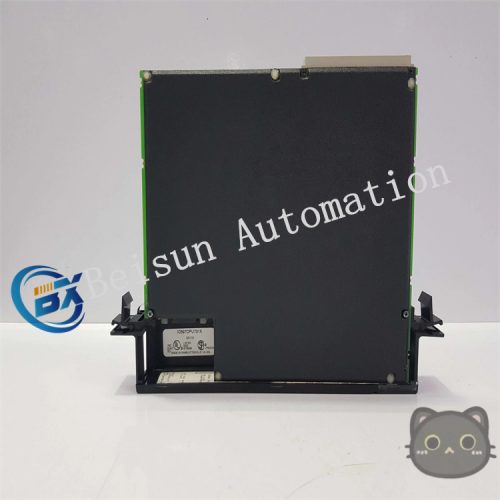

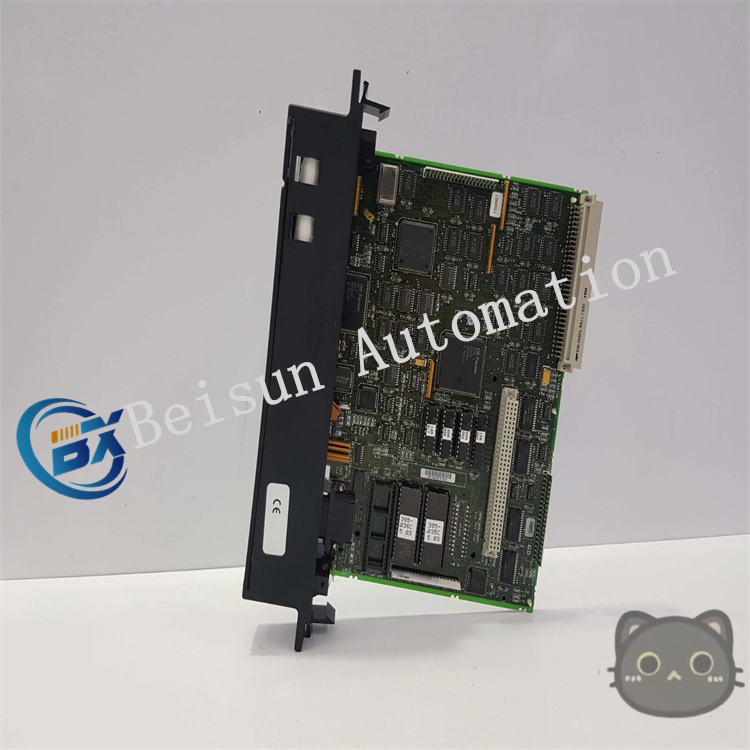

GE IC697CPU731 Central Processing Unit Module

• Manufacturer: GE Fanuc (now part of Emerson Automation Solutions).
• Series: Series 90-70.
• Product Type: PLC CPU module.
• Microprocessor Type: Adopts 80c186 microprocessor with a rated frequency of 12MHz.
• Data and Program Memory: Configurable by users.

• Powerful data processing capability: It can handle arbitrary combinations of up to 512 inputs and outputs, and also support 8000 analog I/Os, which can meet the data processing needs of various complex industrial automation systems.
• Multiple communication methods: It communicates with connected I/O modules and various intelligent option modules through the PLC backplane. It is also equipped with an RS422/485 compatible serial port for connecting to programmers and supports Ethernet TCP/IP communication, facilitating remote programming and monitoring.
• Reliable storage function: Equipped with a lithium battery IC697ACC701 to maintain data and program memory as well as the calendar clock. Data can be retained for 6 months without power supply, and the battery shelf life is 10 years at 20°C.
• Flexible programming method: It can be programmed using DOS-based or Windows-based software, allowing users to design and modify programs according to actual needs.

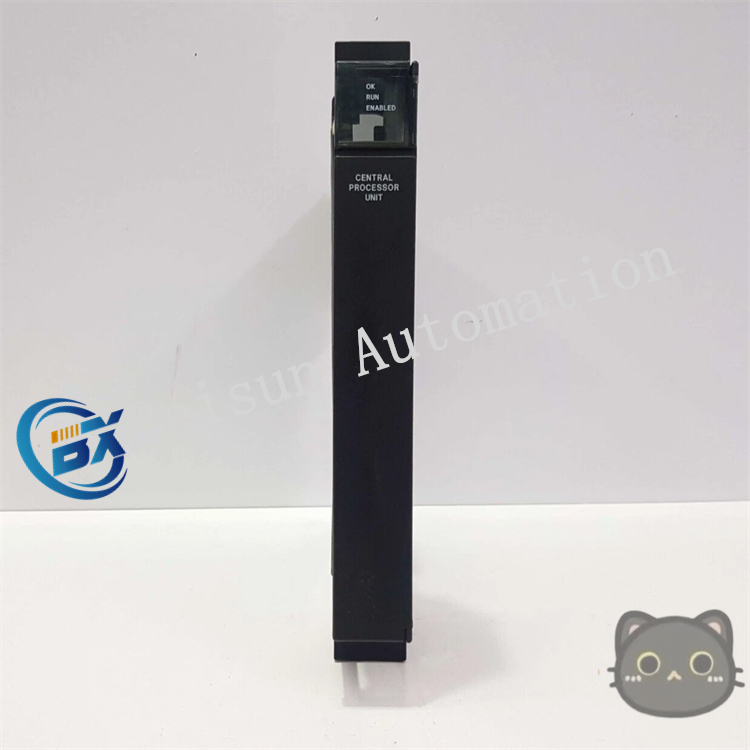

• Status indication function: There are three green LED indicators to indicate the status of the CPU, making it easy for users to understand the working condition of the module.

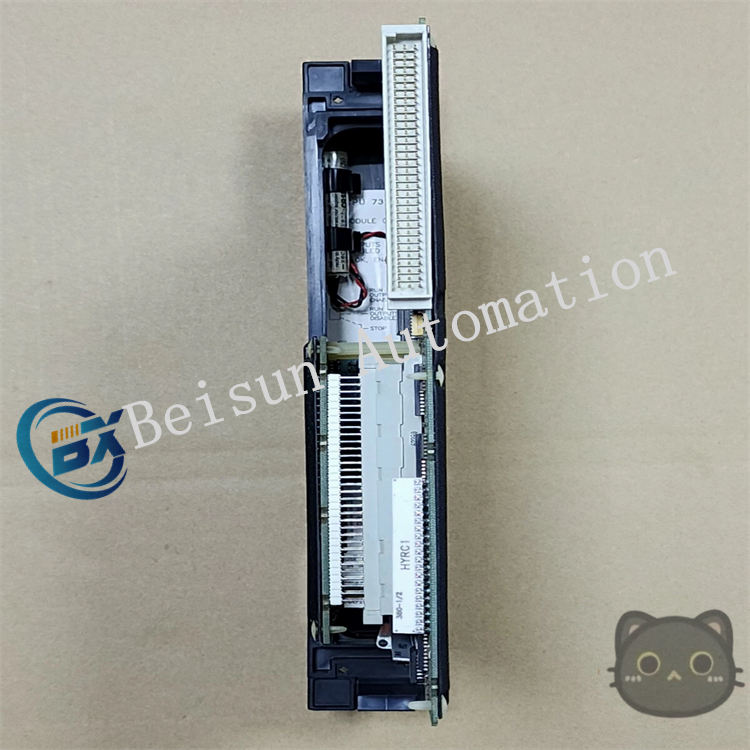

• Installation requirements: The PLC must be powered off during installation. Install the module in a single slot of the PLC rack and connect the battery to the battery connector.
• Operation control: The module operation can be controlled by a three-position operation mode switch, or remotely controlled through a connected programmer and programming software.

• Industrial automation production lines: Used to control various equipment and processes on the production line, such as material handling, assembly, processing, etc., to realize automated production and monitoring, and improve production efficiency and quality.
• Mechanical equipment control: Precisely control various mechanical equipment, such as machine tools, robots, cranes, etc., to ensure stable operation and precise movement of the equipment.
• Process control systems: In process control of industries such as chemical industry, electric power, and water treatment, it can real-time monitor and control process parameters such as temperature, pressure, flow, and liquid level, maintaining the stability and safety of the production process.
• Building automation: Used to control systems such as lighting, air conditioning, elevators, and security in buildings, realizing intelligent building management and improving energy utilization efficiency and comfort of buildings.
