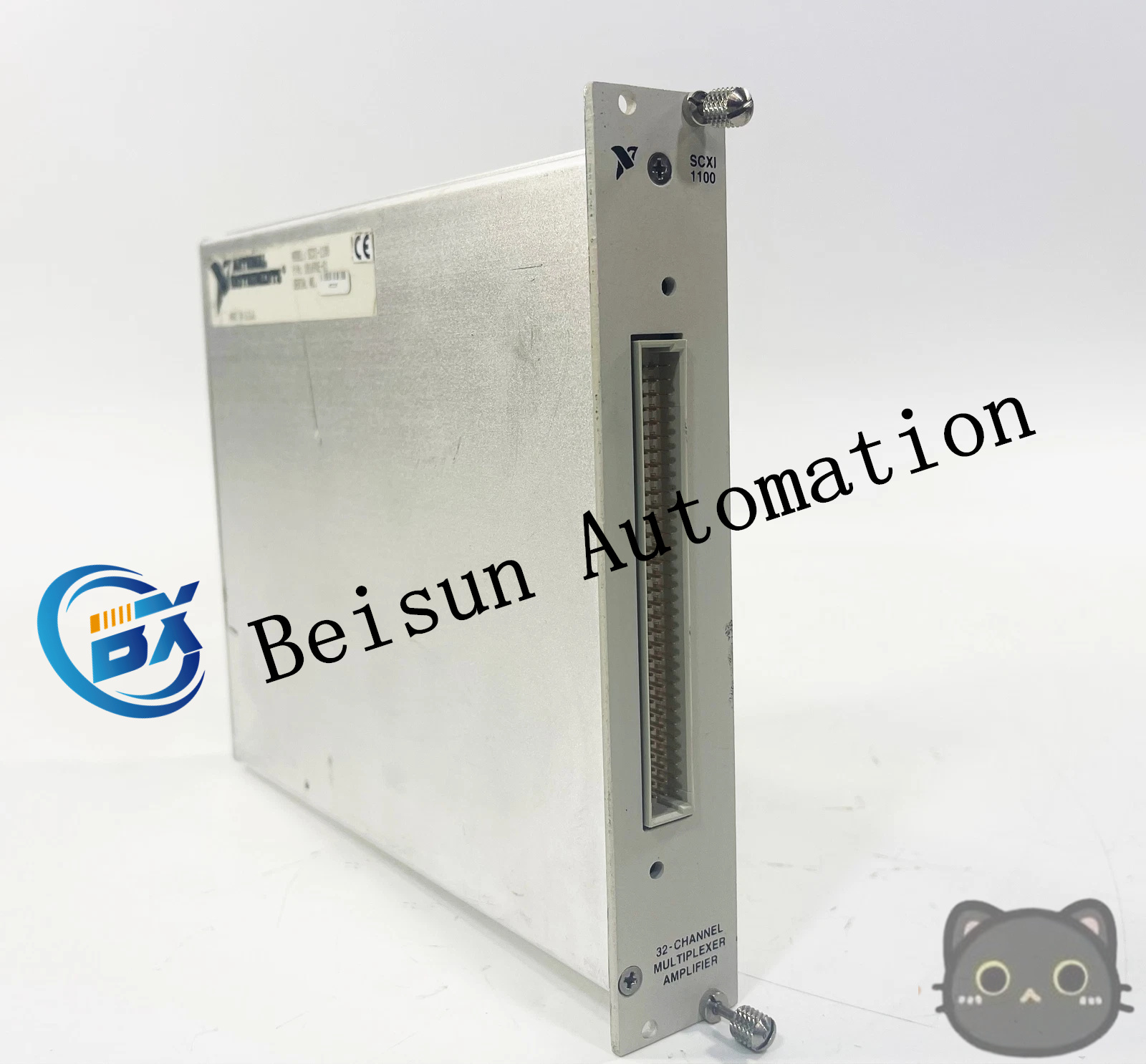

NI SCXI-1100 Input Signal acquisition and measurement system module

NI SCXI-1100 Input Signal acquisition and measurement system module

Functional characteristics
Multi-channel design: It features 32 differential channels and can simultaneously collect multiple analog voltage signals, making it suitable for scenarios that require a large number of channels for data acquisition.
Wide voltage measurement range: It can measure analog voltage signals as low as ±10V, meeting the measurement requirements of various sensors, including voltage signals output from thermocouples, strain gauges, pressure sensors, etc.
Signal conditioning function: Each channel is equipped with a 4Hz low-pass filter that can be selected through patch cords, which is used to filter out high-frequency noise in the signal and improve signal quality. It simultaneously offers multiple gain range options, which can be adjusted according to the amplitude of the input signal to achieve the best measurement resolution and accuracy.
Cold junction compensation function: The terminal block contains a temperature sensor for cold junction compensation of thermocouples, which can ensure the accuracy of thermocouple measurement. The cold-end compensation reference can be multiplexed with the 32 channels on the SCXI-1100, and can also be connected to different channels of the data acquisition board through patch cords.
Multiple connection methods: Equipped with a 96-pin DIN C-type front connector and a 50-pin ribbon cable rear connector, it is convenient for connection with other devices. In addition, it can also be used in conjunction with various terminal blocks, such as rack-mounted, thermocouple plugs, screw terminals, BNC connectors, etc., to meet different application scenarios and wiring requirements.

Technical parameters
Input coupling: DC coupling.
Maximum operating voltage: ±10V.
Dimensions: 1.2×6.8×8.0 inches.
Recommended operating temperature range: 0℃ to 50℃.

Application field
Testing and measurement: It can be used to test electronic devices, communication devices, medical devices, etc., and provide signal acquisition functions for various measuring devices (such as sensors and amplifiers) in the laboratory environment.
Data acquisition: Widely applied in the collection systems of industrial data, environmental data and scientific data, it ensures the normal operation of measurement equipment and provides accurate data.
Control system: In a control system, it provides the required signal acquisition for actuators or control devices to achieve automated control.
Audio testing and measurement: Applicable to audio testing and measurement, noise and vibration diagnosis, machine condition monitoring, as well as noise, vibration and sound roughness analysis in automotive testing, etc.
